Hot-melt road marking machines are indispensable equipment in the construction of hot-melt road markings, widely used in highways, parking lots, communities, and other scenarios. They form wear-resistant, highly reflective markings by heating hot-melt paint, combining high efficiency and environmental friendliness. This article will comprehensively analyze the core value and application scenarios of hot-melt road marking machines from aspects such as equipment functions, technical parameters, selection tips, and operation guidelines.

I. Core Functions and Technical Advantages of Hot-Melt Road Marking Machines

Multi-functional Integrated Design: TianTu hot-melt road marking machines mostly adopt an integrated "melting-marking" structure, which can independently complete processes such as paint heating, mixing, application, and glass bead spreading, making them particularly suitable for construction needs in small or complex sites. High-end models also support a vibrating marking function; switching between ordinary flat lines and vibrating lines can be achieved by changing the hopper, improving construction flexibility.

Precise Temperature Control and High-Efficiency Operation

The equipment typically uses a liquefied petroleum gas (LPG) direct-fired heating system, with a stable temperature control between 180-210℃, ensuring optimal paint flowability. The average daily construction area reaches approximately 800 square meters, significantly improving efficiency.

Intelligent Control System

High-end models are equipped with an automated control module based on a PIC single-chip microcomputer, enabling real-time temperature monitoring, material output adjustment, and marking uniformity control, reducing manual intervention and improving marking quality.

II. Key Parameters and Purchasing Guide for Hot-Melt Line Marking Machines

Core Parameter Analysis

Coating Width: Common range is 100-400mm, with the international standard marking width being 150mm. Users can flexibly adjust this by changing the marking bucket according to their needs.

Coating Thickness: Typically 1.0-3.0mm, depending on the road surface type and paint characteristics.

Purchase Recommendations

Configuration Selection Based on Project Quantity:

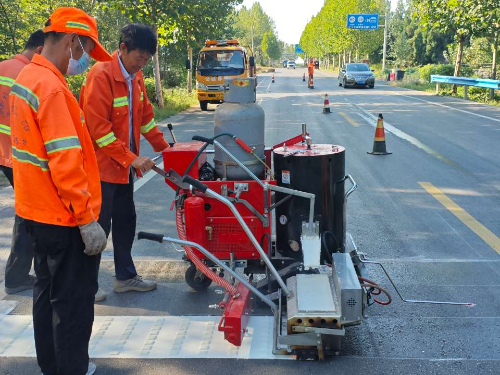

Small Projects: Hand-push hot-melt line marking machine, suitable for scattered construction in parking lots, residential areas, etc.

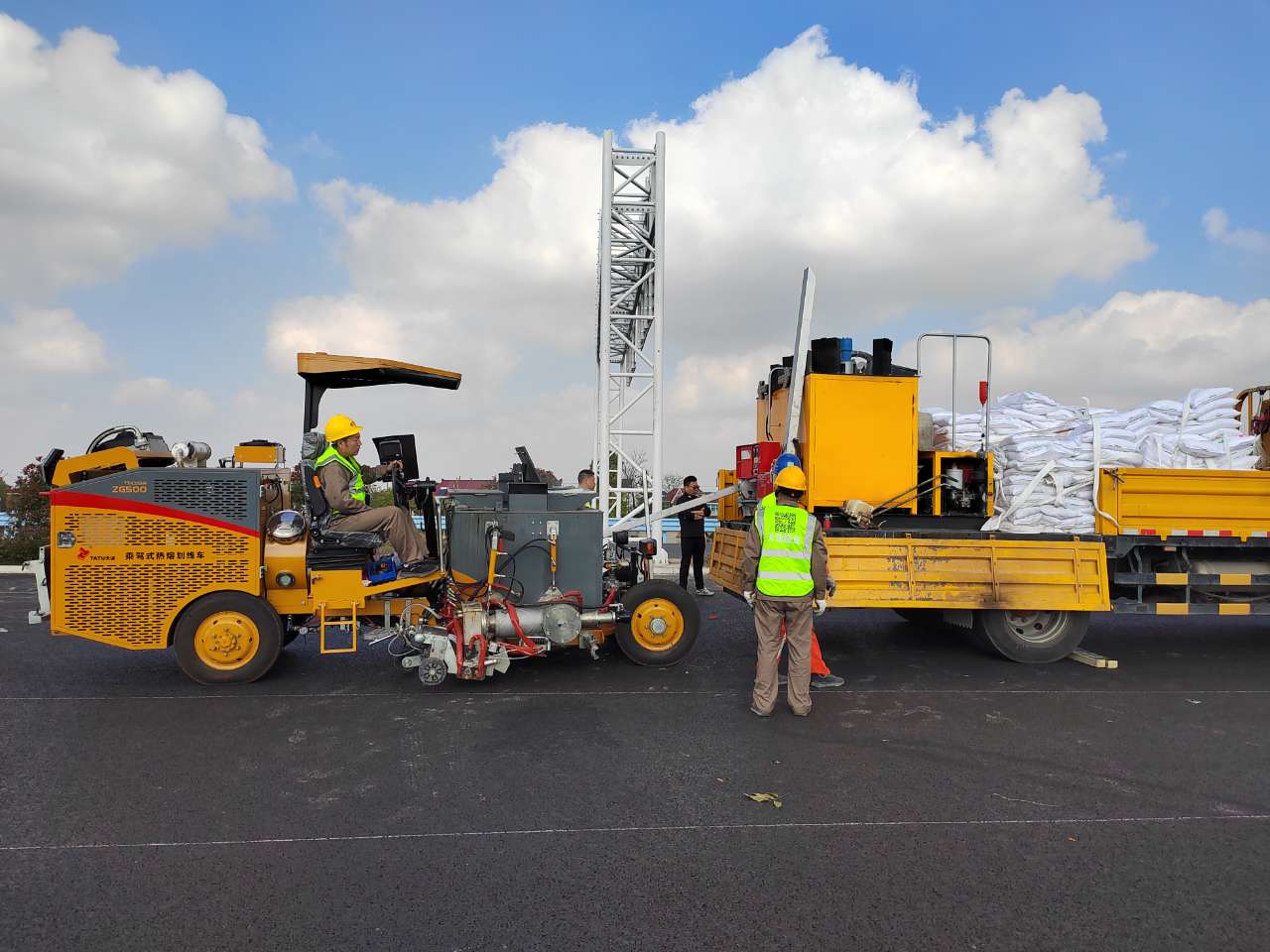

Large-scale projects: Self-propelled or ride-on hot melt line marking machines, paired with large-capacity hot melt autoclaves, blowers, and other equipment, enhance continuous operation capabilities.

Brand and after-sales service: Tiantu Road Industry's products are patent-certified and offer stable quality assurance.

III. Operating Techniques and Maintenance Points

Line Width and Color Adjustment

Width Adjustment: Different line widths can be achieved by changing the hopper.

Color Control: TianTu hot-melt road marking paint is available in white and yellow, and customization is supported.

Construction Precautions

During the heating stage, ensure the paint is completely melted to avoid poor adhesion due to insufficient temperature.

Trial marking is essential. Small-scale tests can verify the uniformity of the markings and the effectiveness of glass bead application.

Equipment Maintenance

Regularly clean the hopper to prevent paint residue blockage.

Inspect heat-resistant components (such as the floor cutter and heating system) for wear and replace high-wear parts promptly.

The high efficiency and adaptability of hot-melt road marking machines make them core equipment for hot-melt road construction. Whether for small parking lots or large highway projects, choosing the right model and mastering operating techniques can significantly improve construction quality and efficiency. For more brand details or the latest quote, please call 400 or consult online.
